Products, Tonearms

AMG 12J2 / 12JT 12″ Tonearm

Name: AMG 12J2 / 12JT 12" Tonearm
SKU: 000639
Availability: InStock

AMG 12J2 / 12JT Turbo 12″ Tonearm

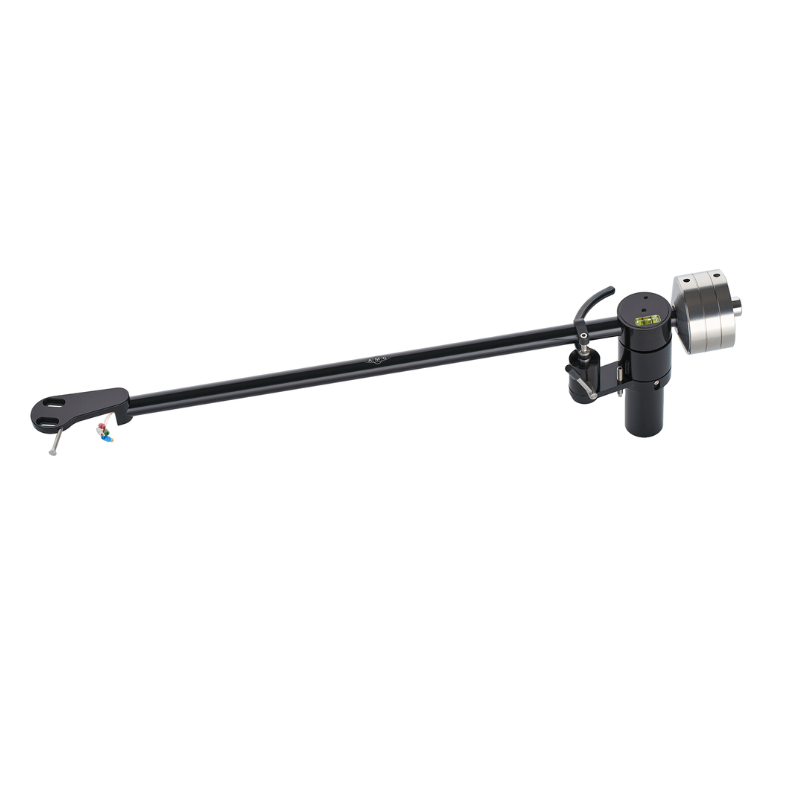

12J2

The original 12 inch tonearm design incorporating AMG‘s patented dual pivot bearing technology, for maximum agility and low-friction performance.

High-precision radial axle horizontal bearing with highly accurate adjustable magnetic anti-skating system.

Balanced and powerful sonic performance with excellent spatial depth and dynamics across the entire audio spectrum.

Fine adjustability of all critical setup parameters for perfect trackability and maximum dynamic performance across a wide range of compatible phonograph cartridges.

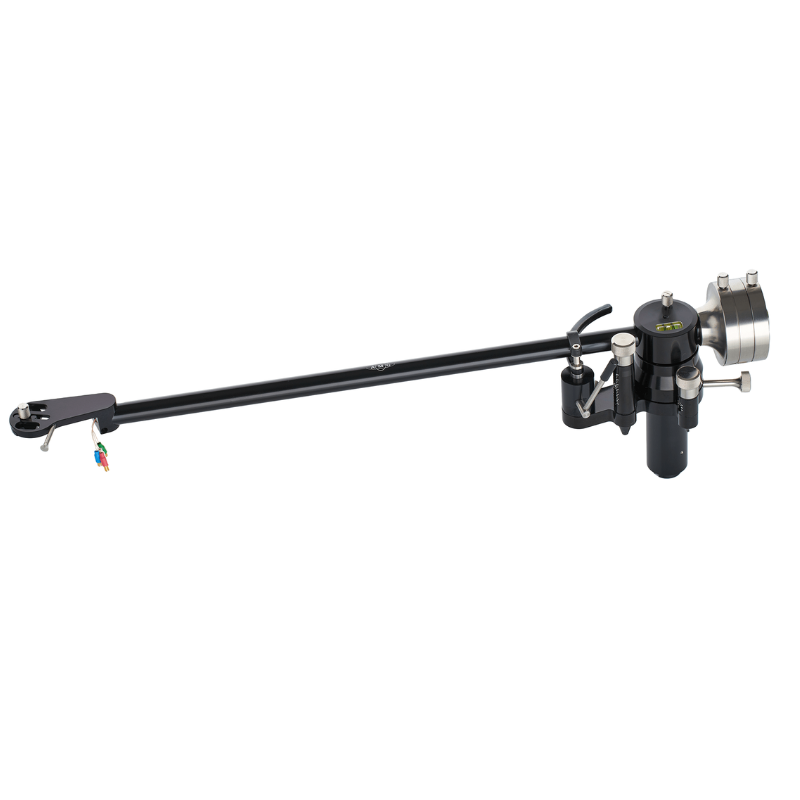

12JT Turbo

The pinacle of AMG‘s tonearm development with improved higher mass bearing for maximum sonic performance and hand adjustable fine-tuning of all setup parameters.

Higher mass bearing combined with 12“ arm tube length creates perfect combination of reduced tracking error and resonance stability, improving upon the already excellent performance of the 12J2.

A complete set of micrometer level adjustments built in allow for the

tool-free fine tuning of all critical setup parameters including VTA, azimuth, anti-skate, overhang, and tracking force.

Perfect combination of form and function with impressive build quality and tangible manufacturing precision.

Assembled by hand as a precision-engineered single piece, precisely measured and comprehensively tested to the highest standards.

Manufacturer’s Website AMG

SKU: 000639 Categories: Products, Tonearms Tags: AMG 12J2 Tonearm, AMG 12J2 Tonearm Australia, AMG 12JT Tonearm, AMG 12JT Tonearm Australia, AMG 12JT Tonearm review, AMG Turbo Tonearm

Description
Additional information

AMG 12J2 Technical data

EFFECTIVE LENGTH	304,8 mm
Distance FROM PIVOT TO TURNTABLE CENTER	291,4 mm
OVERHANG	13,4 mm
Offset Angle	17,89 °
Effective Mass	12,2 g
Null points (inner)	66,04 mm
Null points (outer)	120,9 mm
Bore size for mounting bushing
WITHOUT ADAPTER SOCKET	20 mm
AMG VIELLA ADAPTER SOCKET	25 mm
AMG VIELLA FORTE ADAPTER SOCKET	30 mm
ADAPTER SOCKETS FOR EXTERNAL DRIVES	Divers
BOREHOLE CIRCLE DIAMETER FOR SCREWS	30 / 48 mm

AMG 12JT Turbo Technical data

EFFECTIVE LENGTH	304,8 mm
Distance FROM PIVOT TO TURNTABLE CENTER	291,4 mm
OVERHANG	13,4 mm
Offset Angle	17,89 °
Effective Mass	12,2 g
Null points (inner)	66,04 mm
Null points (outer)	120,9 mm
Bore size for mounting bushing
WITHOUT ADAPTER SOCKET	20 mm
AMG VIELLA ADAPTER SOCKET	25 mm
AMG VIELLA FORTE ADAPTER SOCKET	30 mm
ADAPTER SOCKETS FOR EXTERNAL DRIVES	Divers
BOREHOLE CIRCLE DIAMETER FOR SCREWS	30 / 48 mm
