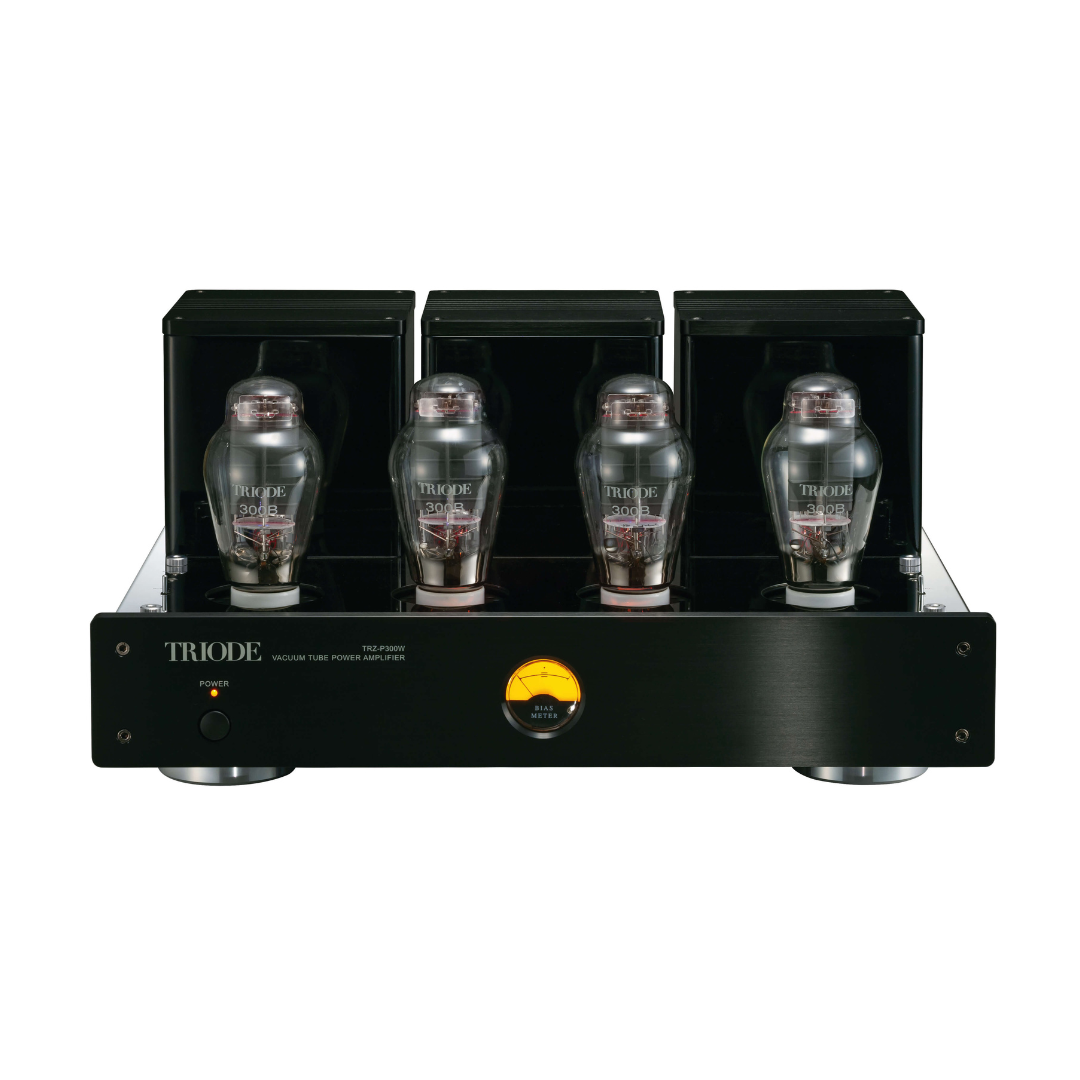

Triode Corporation TRZ-P300W Specifications
| Circuit system | 300B class A parallel single ended stereo power amplifier |
| Tubes | 300B x 4, 12AX7 x 2, 12AU7 x 2 |
| Bias | Fixed bias, adjustable with bias meter |
| Output power | 20W+20W at 8 ohms |
| Frequency response | 5Hz-70kHz(-3dB) |
| S/N ratio | 93dB |
| Input sensitivity | MAIN IN 720mV |
| Input impedance | MAIN IN 10k ohm |
| Input terminals | RCA unbalanced x 1(MAIN IN x 1) |
| Speaker output terminals | 4～8 ohms |
| Equipped components | High quality speaker terminal |
| Other functions | GAIN control : 0dB, -3dB, -6dB, -12dB Bias adjuster with bias meter |
| Power consumption | 240W(210W/No signal) |
| Dimensions | W440mm x D350mm x H220mm |
| Weight | 33.6kg |
| Accessories | Tube cover |
