Name: Boulder 3010 Balanced Preamplifier
SKU: 000687
Availability: InStock

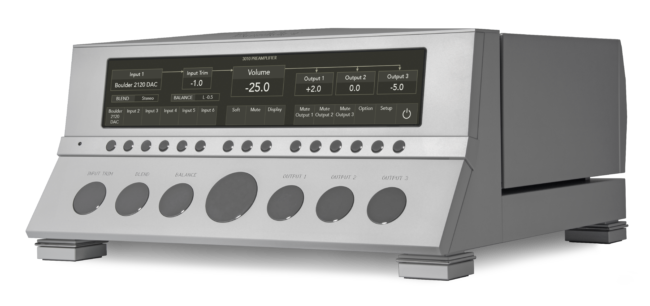

Boulder 3010 Balanced Preamplifier

BOULDER 3010 Balanced Preamplifier

The 3000 Series has become synonymous with the ultimate in sound quality; a level of performance reserved for only the finest audio systems in the world. But traditional thought says that the more features and functions added to a preamplifier, the more of an effect they have on sound, right?
Once again, Boulder’s engineers have proven traditional wisdom wrong and achieved something very special. The 3010 is easily the greatest preamplifier in the history of the company. It’s also the most flexible preamp we’ve ever designed.

Manufacturer’s Website BOULDER

Boulder 3010 Specifications:

BALANCED INPUTS
6 via 3-pin XLR
BALANCED OUTPUTS, DUAL
3 via 3-pin XLR
AUXILIARY BALANCED OUTPUT
1 via 3-pin XLR
MAXIMUM INPUT LEVEL
7 Vrms
MAXIMUM OUTPUT LEVEL
28 Vrms
THD+N, 2V OUTPUT, 20 HZ TO 5 KHZ
0.0008% (-102 dB)
THD+N, 2V OUTPUT AT 20 KHZ
0.001% (-100 dB)
MAXIMUM VOLTAGE GAIN
20 dB
VOLUME RANGE
100 dB
VOLUME STEPS
0.1, 0.5, 1.0 dB ± 0.01 dB
AUXILIARY PATH GAIN
-1 dB
FREQUENCY RESPONSE, 20 HZ TO 5 KHZ
+0.00, -0.03 dB
FREQUENCY RESPONSE, -3 DB
0.02 Hz & 300 kHz
INPUT IMPEDANCE
333kΩ, Balanced
OUTPUT IMPEDANCE
100Ω, Balanced
POWER REQUIREMENTS
90-120V / 200-240V, 50 – 60 Hz
POWER CONSUMPTION
240W Maximum
PREAMPLIFIER CHASSIS DIMENSIONS
19” (48.25 cm) W x 18” (45.75 cm) D x 9.25” (23.5 cm) H
PREAMPLIFIER CHASSIS WEIGHT
78 lbs. (35.4 kg)
POWER SUPPLY CHASSIS DIMENSIONS
19” (48.25 cm) W x 18” (45.75 cm) D x 5.1” (13 cm) H
POWER SUPPLY CHASSIS WEIGHT
45 lbs. (20.4 kg)
SHIPPING DIMENSIONS
27” (68.6 cm) W x 33” (83.8 cm) D x 26” (66.1 cm) H
