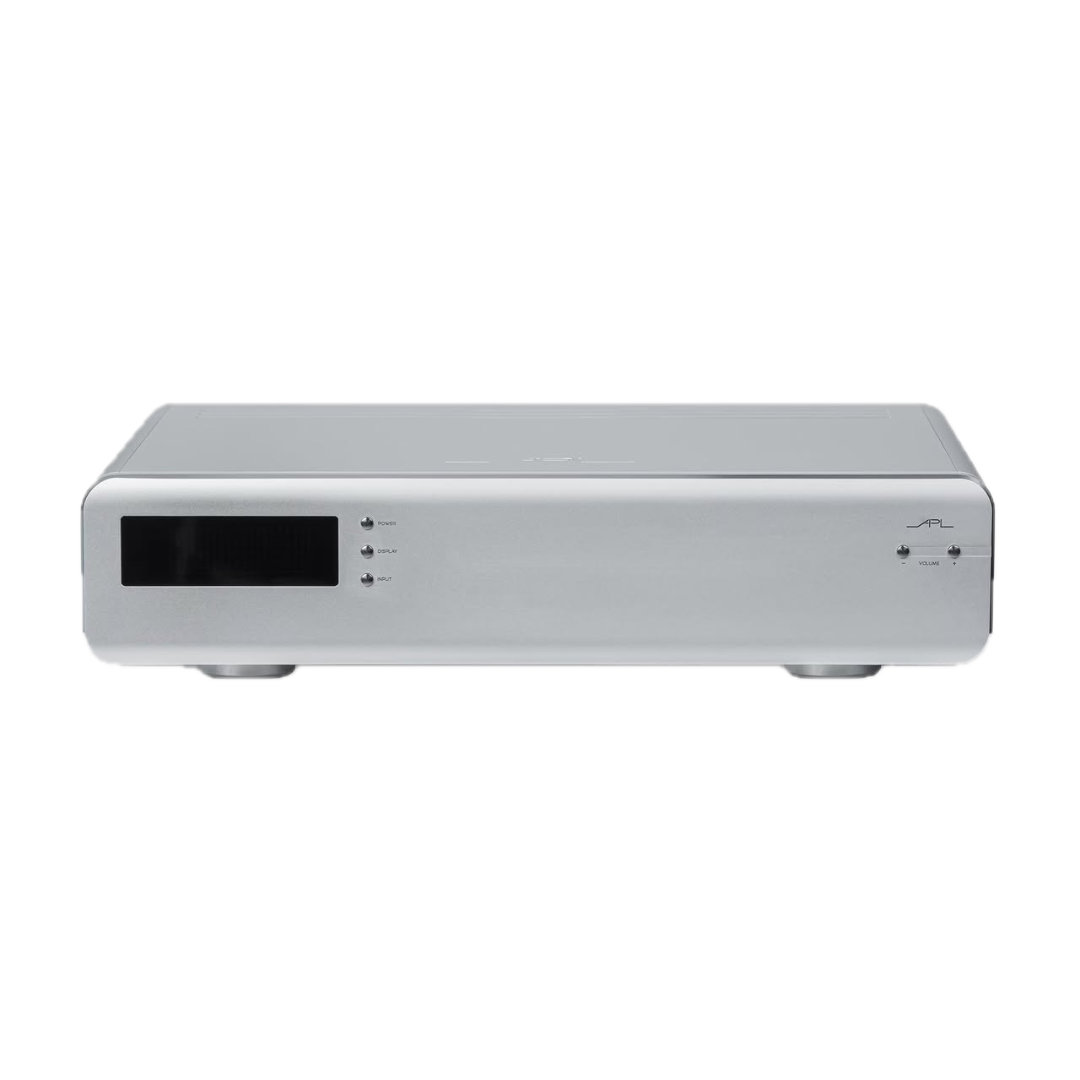

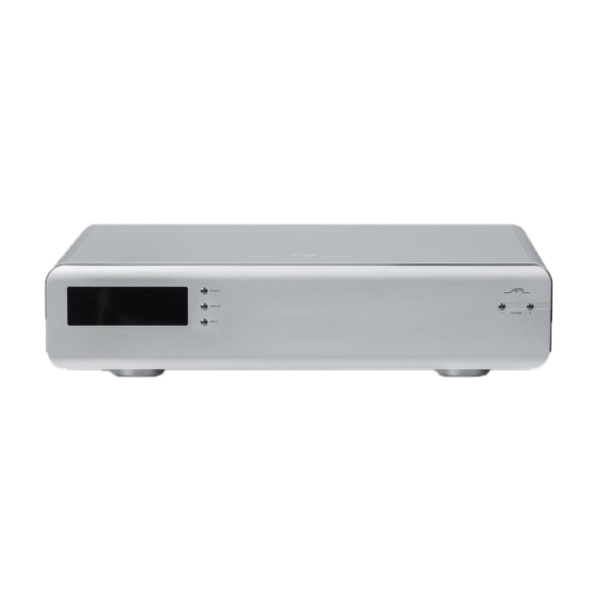

APL Hi-Fi DSD-WR DSD DAC
APL Hi-Fi DSD-WR DSD DAC - Image 2
,

APL Hi-Fi DSD-WR DSD DAC

$39,500.00

APL Hi-Fi DSD-WR DSD DAC

the new DSD-WR DAC. It is the successor to the DSD-SR SE, and performs notably better. It comes in a new style aluminum enclosure with similar appearance as our reference DSD-GR DAC.
The DSD-WR comes with many improved features, such as custom R-Core power transformer wound with OFC wire, improved power supplies, 64 bit DSD modulator, solid core OFC wiring for the power supply, Esprit Audio France signal wiring, custom OFC output transformers by Lundahl Transformers Sweden and many more.
We feel that the new DSD-WR is an outstanding performer for its price range – Analogue Sound from Digital.

Manufacturer’s website APL HI-Fi

SKU: 778998 Categories: , Tags: , , , , , , ,

APL Hi-Fi DSD-WR DSD DAC Specifications

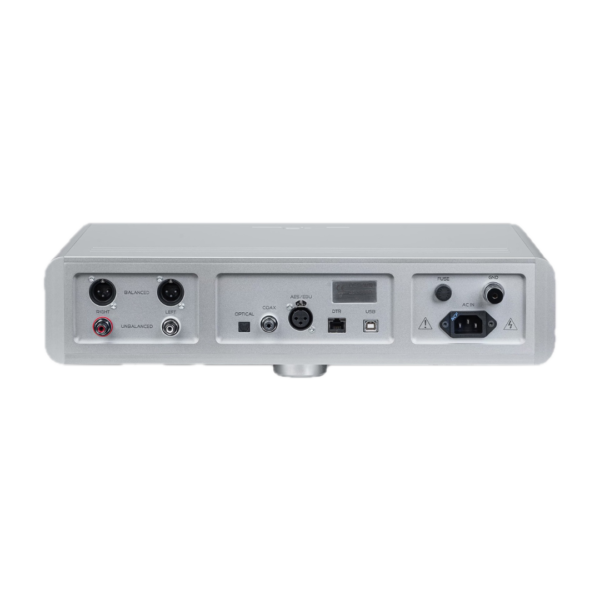

Digital Inputs

  • S/PDIF Coaxial digital inputs with WBT RCA connectors.
  • AES/EBU professional standard balanced digital input.
  • Note! S/PDIF, AES/EBU and Optical accepting up to 192kHz/24bit PCM.
  • USB input
  • Proprietary DTR input connection.

Analog Outputs

  • Single Ended RCA outputs with WBT RCA connectors.
  • Output level – 2.1V RMS at 0dBFS.
  • Output impedance – approximately 15 Ohms.

Power input and fuses

  • IEC power inlet made by Furutech.
  • 120V or 230V / 50-60Hz, factory pre-set.
  • Other power input voltages available on request.

Dimensions and weight

  • N/A
Please find reviews below:
Weight10 kg
