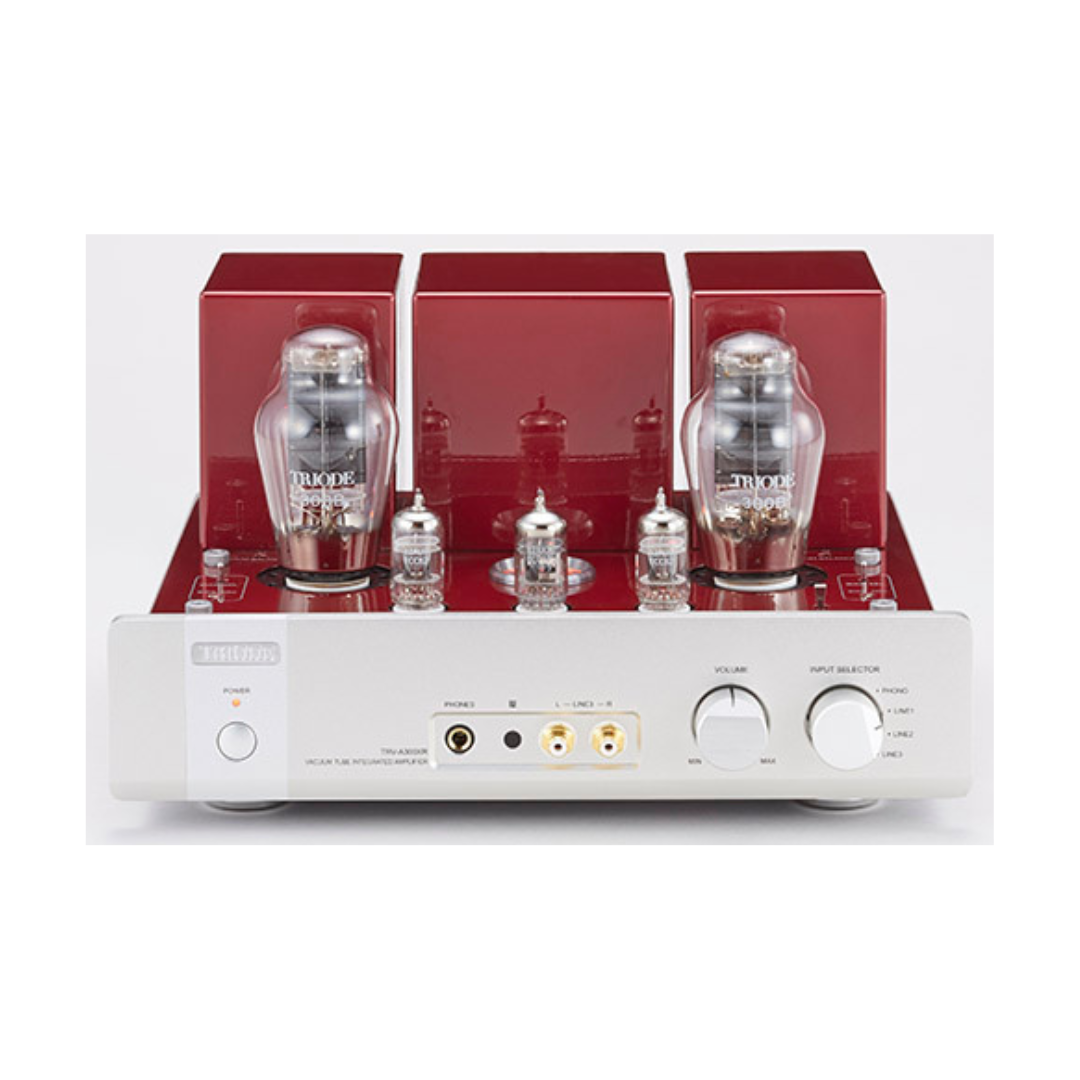

Triode Corporation TRV-A300XR Specifications:
| Circuit system | 300B A class single ended integrated amplifier |
| Tubes | 300B*2 , 12AX7*1 , 12AU7*2 |
| Bias | Fixed bias |
| Output power | A class 8W+8W at 8 ohms |
| Frequency response | 10Hz-50kHz(-3dB) |
| S/N ratio | 90dB |
| Input sensitivity | LINE 400mV , MM 2.5mV |
| Input impedance | LINE 100k ohm , MM 47k ohm |
| Input terminals | RCA unbalanced*3(LINE1-3) , MM*1 |
| Output terminals | REC OUT*1 |
| Speaker output terminals | 6 ohms , 8 ohms |
| Headphone output | 6.3mm stereo jack |
| Equipped components | High quality speaker terminal |
| Other functions | Remote control (Volume , Mute) |
| Power consumption | 120W (No signal) |
| Dimensions | W345mm*D320mm*H200mm |
| Weight | 17kg |
| Accessories | Tube cover , Wooden side plates , Remote control , |
