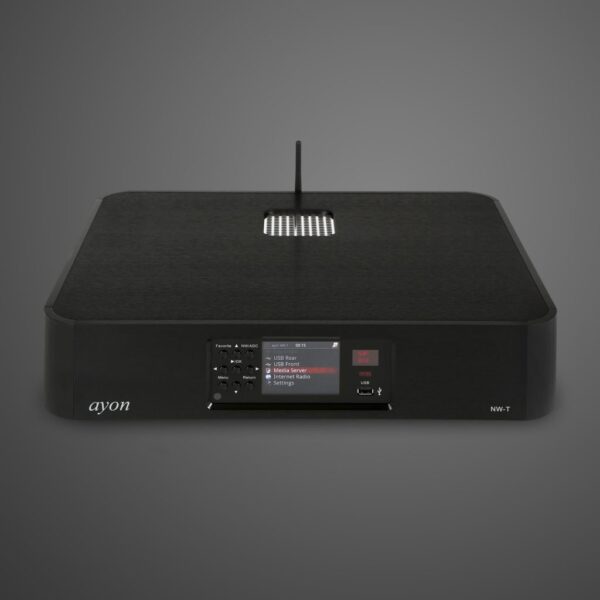

Ayon Audio NW-T Network Transport Streamer

AYON AUDIO NW-T Network Transport / DSD option

The Music NW-T is a new outstanding design which includes a Network-Transport with its “tube buffered digital output stage” and an Analog/Digital converter (ADC). The Network-Transport can be connected with any external DAC or CD-player with a digital input (DAC section). Furthermore its built-in ADC can be used to convert analog signals (e.g. of a phono-stage) into digital signals or into FLAC files respectively and to store them afterwards in an NAS. Special attention was paid to the tube-power supply and the digital output signal, because this digital interface is significantly involved to achieve “analog-magic” sound properties in the external DAC to a large extent. The NW-T was designed to maintain all advantages of a tube (in the power supply as well as in the digital output stage) in combination with streaming. The NW-T uniquely unifies both and offers a new dimension of sound far above its class.

The NW-T now is also available as DSD version.
Playback of DoP (DSD over PCM) and native DSD is supported by e.g. JRiver Media Center.
Existing NW-T’s can be upgraded to the DSD version too.

Manufacturer’s website AYON Audio

Please find reviews below

http://www.ayonaudio.com/reviews/digital.html

 Ayon NW-T Specifications

Digital/Analog Converter

Ayon NW-T

Conversion rate

192kHz / 24 bit

Tube complement

6H14 & 6Z4

Dynamic range

> 120dB

Analog input / ADC

S/PDIF (RCA )24/192kHz

Digital output

S/PDIF, BNC, I2S, TosLink, AES/EBU

Network digital inputs

RP-SMA plug Wifi Aerial input (“wireless” network connection) 802.11b/g
 UTP RJ45 10/100Mbps socket (“wired” network connection)

Digital inputs

Front mounted USB type ‘A’ socket for USB “pen”/hard disk drive
Rear mounted USB type ‘A’ socket for USB “pen”/hard disk drive

Network digital inputs

RP-SMA plug Wifi Aerial input (“wireless” network connection) 802.11b/g
 UTP RJ45 10/100Mbps socket (“wired” network connection)

S/N ratio

> 120 dB

Frequency response

10Hz – 50kHz  +/- 0.3dB

Total harmonic distortion @ 1kHz

< 0.002%

Remote control

Yes

Dimension (Wide x Deep – incl. terminals x High – incl. feet) cm

48 x 36 x 12 cm

Weight, unit only

10 kg


Weight2 kg
