SOULNOTE E-1 ver.2 Phono Equalizer
Full discrete non-NFB circuit
An extremely simple configuration, consisting merely of a power amplifier with a selector and volume control, is identical to that of SOULNOTE‘s flagship integrated amplifier A-3.
Single push-pull output stage using TO-220 transistors
The final output stage employs TO-220 transistors with low Cob and high-frequency characteristics in a single push-pull configuration. This is a high-end amplifier prioritizing quality, achievable only by limiting maximum output to 10W
Four-stage Darlington circuit
Delivering a maximum output of 10W while employing the same four-stage Darlington configuration as A-1 ver.2 and A-2 ver.2. Even at low volumes, it demonstrates drive capability, producing air pressure changes.
Newly developed bias circuit
A newly developed bias circuit is adopted. S/N has been dramatically improved.
Enhanced pre-out function
- For the pre-out output, a powerful High mode is selectable, which outputs the loudspeaker output signal directly. A Low mode is also selectable, where the output is attenuated for easier handling.
- When selecting the pre-amplifier, a mode has been applied that outputs the loudspeaker output signal. A mode that cuts off the loudspeaker output is also selectable.

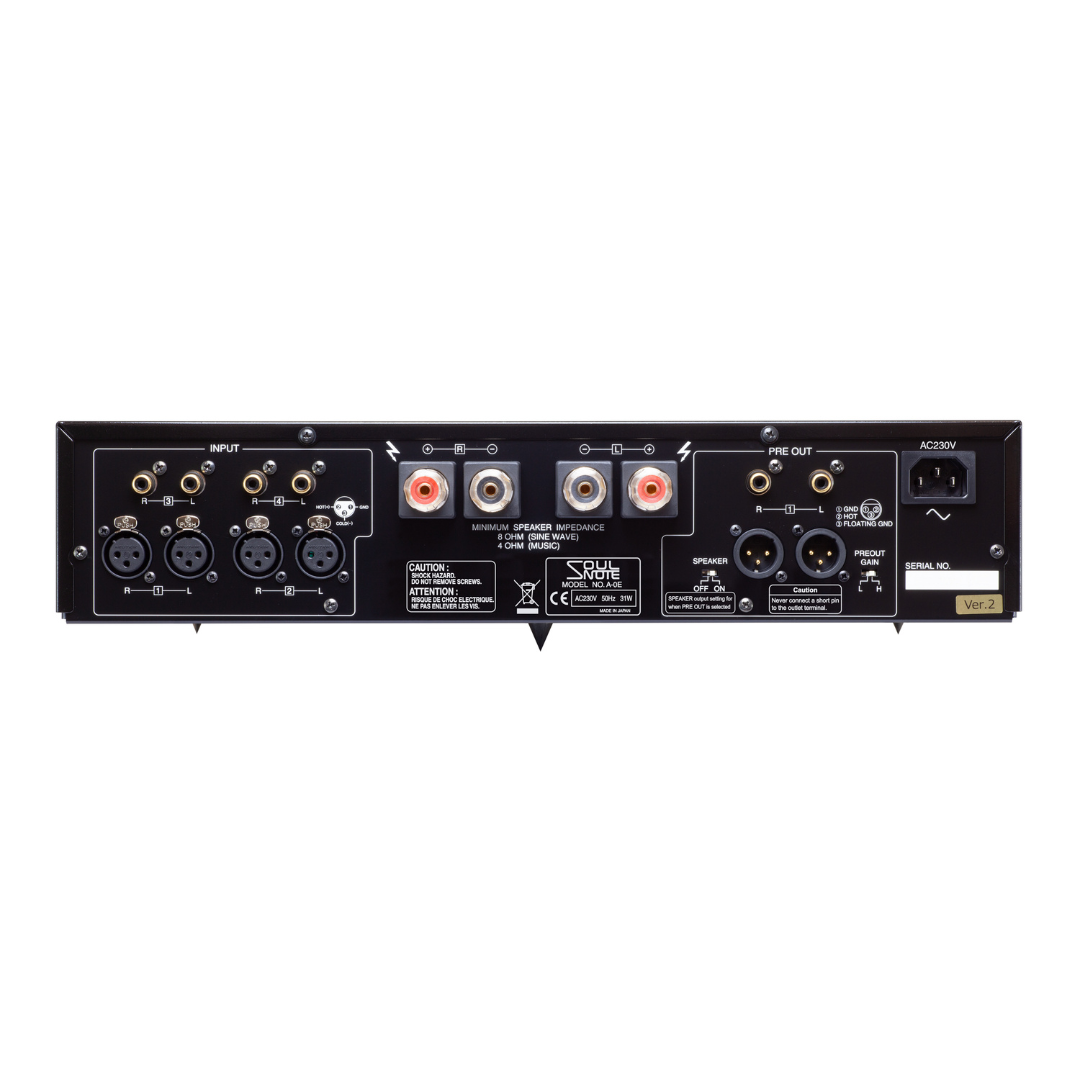

- The pre-out terminals feature both RCA and XLR connectors. The XLR terminals are configured as: [1] GND [2] HotA [3] Floating GND, enabling the noise-cancelling benefits inherent to balanced connections. Using SOULNOTE non-shielded balanced cables such as RBC-1 allows the pre-amplifier to deliver its maximum potential.
Non-fixed top cover
The top cover is not fixed. This achieves a natural sound field and a sense of openness.
Direct mechanical grounding construction
By positioning a foot directly beneath the transformer, its vibration is released directly outside the chassis. Furthermore, employing a three-point support system via spike feet eliminates sound muddiness caused by chassis damping, achieving a vibrant and soulful sound.
