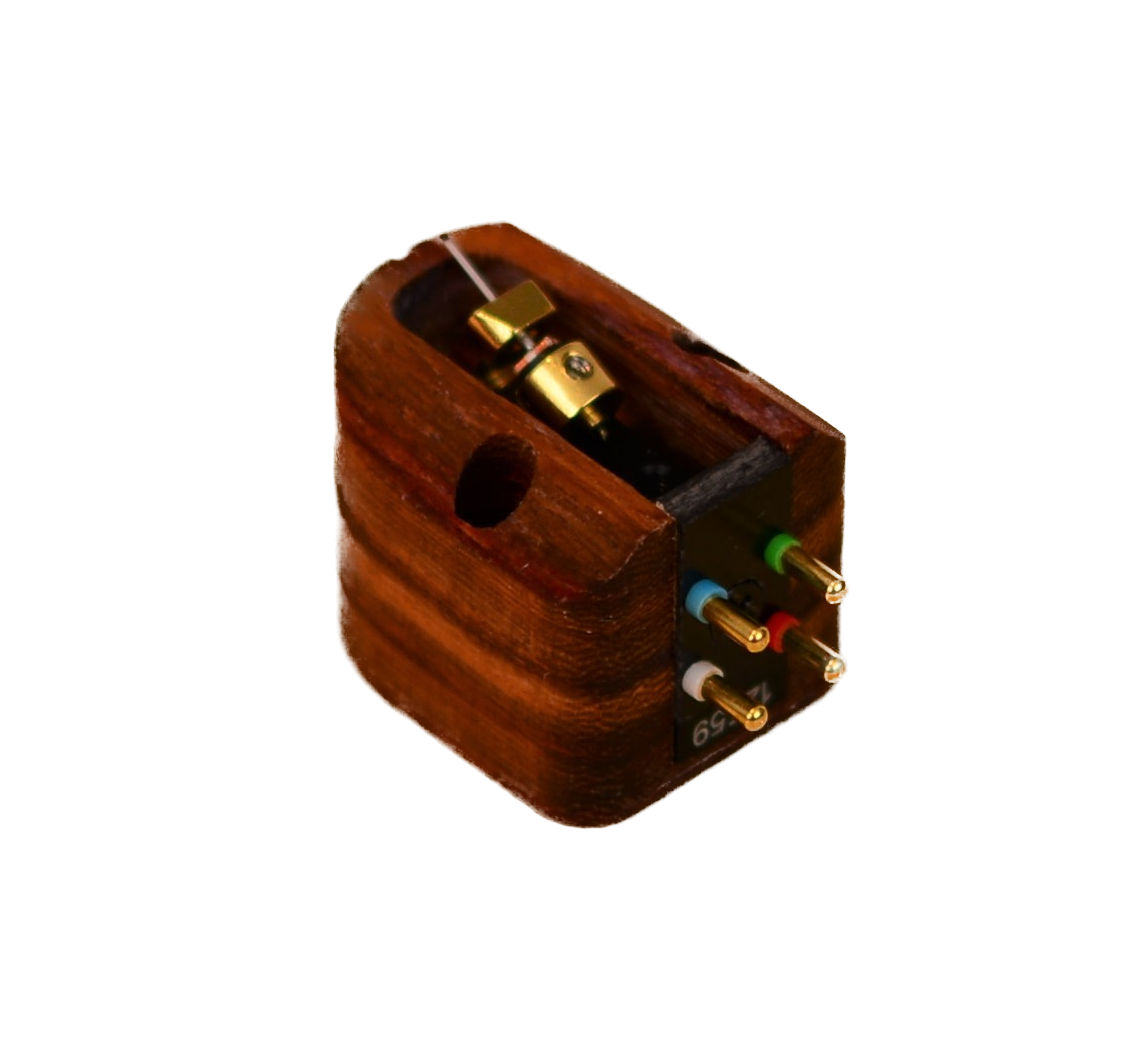

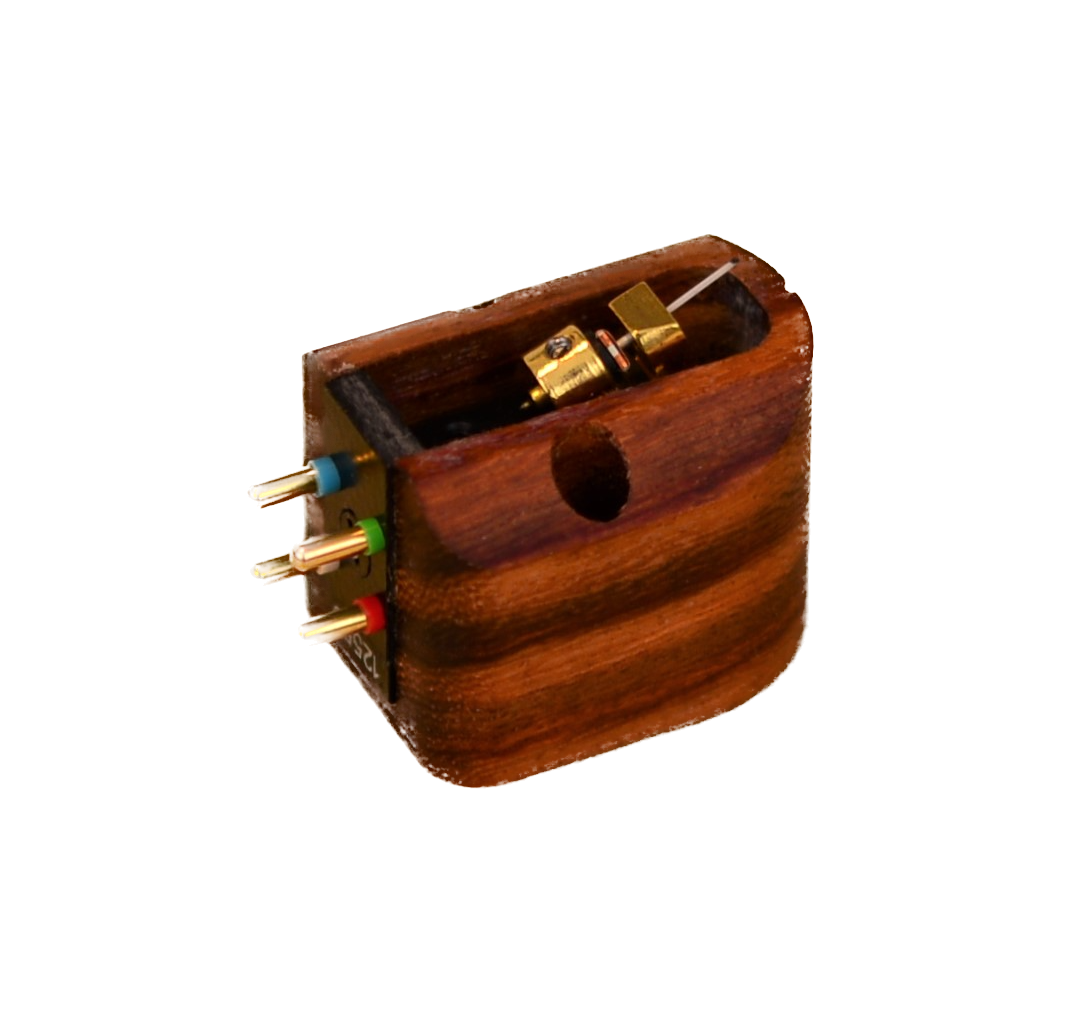

Charisma Audio Signature Two Specifications:
Cartridge Weight: 8 g
Cartridge Body: yellow rosewood
Cantilever: white ceramic
Stylus: micro fine line contact nude diamond
Vertical Tracking Angle: 20 degrees
Coil: pure iron square coil with custom made alloy wiring
Output Voltage: 0.25 mV at 3.54 cm/sec.
Internal Impedance: 2 ohms
Frequency Response: 20 – 30,000 Hz ± 1 dB
Channel Balance: better than 0.5 dB
Channel Separation: better than 30 dB
Dynamic Compliance: 10 um/mN
Recommended Loading: 100 – 500 ohms
Recommended Tracking Force: 1.8 g ± 0.1 g
Tracking Ability at 315 Hz / 2 g: 70 uM
Recommended Tonearm Mass: medium
Break-in Period: 50 hours
