Ayon Audio Triton III Integrated Amplifier

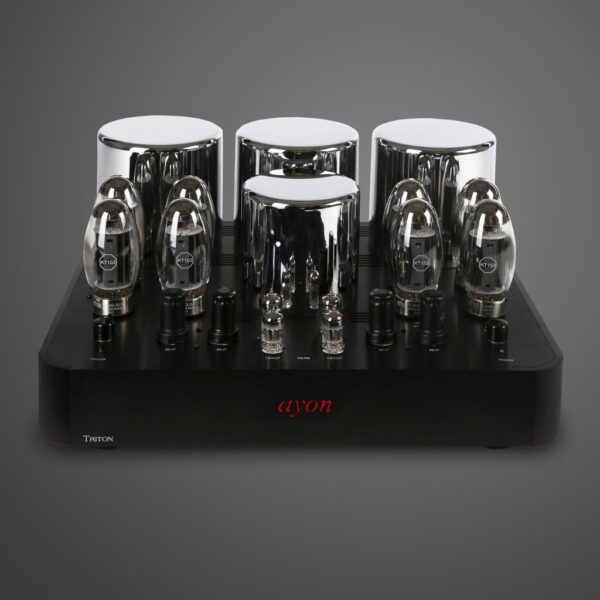

Ayon Audio Triton III Tube Integrated Amplifier

We are proud to introduce our latest third-generation integrated amplifier, the Triton III. This design presents a substantial upgrade to our very popular Triton II stereo integrated amplifiers, highly-regarded for providing world class performance in a beautiful-engineered, compact, and elegant package. All the gain stages have been re-designed and optimized as well to provide for the shortest signal path and the most direct signal flow. The result is a significant advance in sonic performance, wider and deeper airy soundstage with greatly improved powerful bass punch and dynamics. Musical finesse and superb powerful performance has been combined without compromise into one convenient chassis and affordable pricing. Compared with many top grade integrated amplifiers, the Triton III is a mid-priced unit, but we are confident that value and musical performance is approached maybe by few KT88 designs only, regardless of cost. The Triton integrated is also available as a pure stereo power amp, the Triton PA! The Triton III and Triton PA are also available with KT150 power tubes.

Manufacturer’s website AYON Audio

Please find reviews below

http://www.ayonaudio.com/reviews/amplifier.html

“Positive Feedback” Online Magazine Review

http://www.positive-feedback.com/Issue50/ayon.htm

Ayon Audio Triton III Specifications

Amplifier

Ayon Triton III

Class of Operation

Triode* or Pentode mode, Class-A*

Tube Complement

8 x KT150

Load Impedance

4 & 8 Ohms

Bandwidth

8Hz-70kHz

Output Power:Pentode mode

2 x 120 W

Output Power:Triode mode

2 x 70 W

Frequency Response

10 Hz – 60 kHz

Input Impedance at 1 kHz

100 KΩ

Input sensitivity (full power)

1V

NFB

0dB

Volume Control

MCU based with analog resistor switching circuit (1,5dB per step)

Remote Control

Yes

Inputs

3 x Line IN, 1 x XLR IN, 1 x Direct IN,

Output

1 x Pre Out

Dimensions (WxDxH) cm

51x42x25 cm

Weight

45 kg


Weight2 kg
