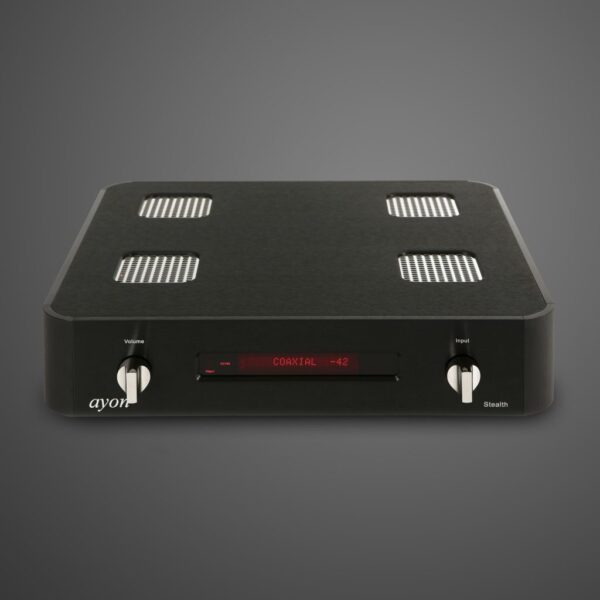

Ayon Audio Stealth Tube DSD DAC / Preamp

Ayon Audio Stealth DSD DAC / Tube Preamp

Ayon Audio is pleased to introduce the distinguished audiophile “Stealth” DAC.
The Stealth is also prepared for computer playback and general DSD professional audio use. The dual differential gain stage is composed of 2 high performance tubes per channel. The Stealth DAC features a vastly overrated, high capacity power supply for the analog output stage with tube “bridge” rectification, choke coupling and two oversized power transformers. The sound is powerful with fantastic bass speed, extraordinary dynamic, airy, detailed and holographic. A new vacuum tube based DAC star was born and offers an outstanding price/performance and value.

Manufacturer’s website AYON Audio

Ayon Stealth Specifications

Digital/Analog Converter

Ayon Stealth

Conversion rate

32 bit, PCM up to 192k, 64xDSD, 128xDSD

DAC configuration

8 mono DACs to 2- stereo outs

Tube complement – Analog output

6H30

Dynamic range

> 128dB

Output level @1 kHz / Rms

0-12V

Output impedance  Single-Ended-RCA

~ 300 Ohms

Output impedance  Balanced-XLR

~ 300 Ohms

Digital input

1 x S/PDIF, 1 x AES/EBU, 1 x Toslink,
1 x BNC, 1 x USB, 1 x I2S, 3 x BNC for DSD

Analog line  input/output

RCA

Analog output

RCA & XLR

S/N ratio

> 120 dB

Frequency response

20Hz – 20kHz  +/- 0.2dB

Total harmonic distortion @ 1kHz

< 0.002%

Remote control

Yes

Dimension (WxDxH) cm

48x40x11 cm

Weight

16 kg


Please find reviews below

http://www.ayonaudio.com/products/digital/dac/stealth.html

The Absolute Sound

“The Absolute Sound” TAS Magazine Review

http://www.ayonaudio.com/fileadmin/pdf/Ayon_Stealth_Review_TAS_248.pdf
