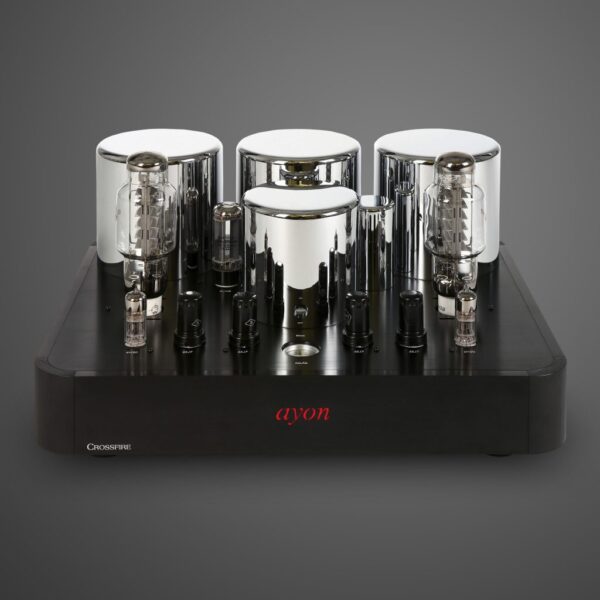

Ayon Audio Crossfire III / Crossfire PA Amplifier

Ayon Audio Crossfire III Integrated Amp / Crossfire PA Power Amp

Ayon Crossfire III continues the evolution of the Crossfire II amplifier by once again offering dramatic improvements to its completely revised third-generation power supply, tube regulator and new gain stage technology. The gain stages have been optimized to provide for the shortest signal path and the most direct signal flow. Furthermore a new revolutionary MCU based volume control system with analog resistor switches has been installed. The Crossfire III is our most powerful SE-triode integrated amplifier featuring single-ended triode circuitry with our exceptional Ayon 62B power tube. Zero dB feedback, pure class-A operation for the most natural fast and authentic 3D holographic sound. It’s uncompromising design with rich and varied interplay of macro- and micro lines of dynamic performance. The ambiance of the original event is reproduced with uncanny precision as space illuminated by music. The Crossfire III is a magic masterpiece of simplicity and function which is pleasing to the eye and pleasant to the touch.
The Crossfire integrated is also available as a pure stereo power amp, the Crossfire PA!

Manufacturer’s website AYON Audio

Ayon Crossfire III / PA pecifications:

  • Class of Operation : Single-Ended, Pure Class-A
  • Tube Complement : 2 x AA62B
  • Load Impedance : 4 & 8 Ohms
  • Output Power : 2 x 30 Watt
  • Frequency Response : 8 Hz – 35 kHz/ 0 dB
  • Input Impedance at 1 kHz : 100 KΩ
  • S/N ratio at full power : 98 dB
  • NFB : 0dB
  • Volume Control : MCU based with analog resistor switching circuit (1,5dB per step)
  • Remote Control : Yes
  • Inputs & Output : 3xLine In, 1x XLR In, 1xDirect In, 1x Pre  out
  • Dimensions (WxDxH) cm : 52x42x25 cm
  • Weight : 45 kg
  • Shipping weight : 55 kg



Please find reviews below:

www.ayonaudio.com

“High Fidelity” Online Magazine Review

http://www.highfidelity.pl/@main-485&lang=en

“TNT” Online Magazine Review

http://www.tnt-audio.com/ampli/ayon_crossfire_e.html

“Stereoplay”

April 2013, Germany;  awarded as „Stereoplay REFERENCE“

Review quotes: English Translation

Enchanting. Tempting. Presenting the nature of the music absolutely to the point. The Ayon triode perfectly manages the rare mix of highest resolution and warmness, a fine presentation without the slightest harshness.
Compared with the …….amplifier  voices had more acoustic colour, the chant was even more vivid. Moreover the plasticity of the representation was so close, so true, that almost nobody had heard anything better before.
Combined with the right loudspeaker it ranks among the best sounding amplifiers worldwide.

Weight27 kg
