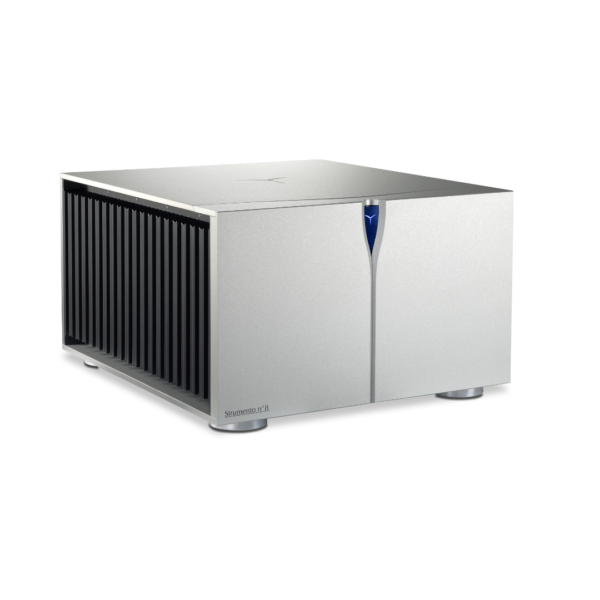

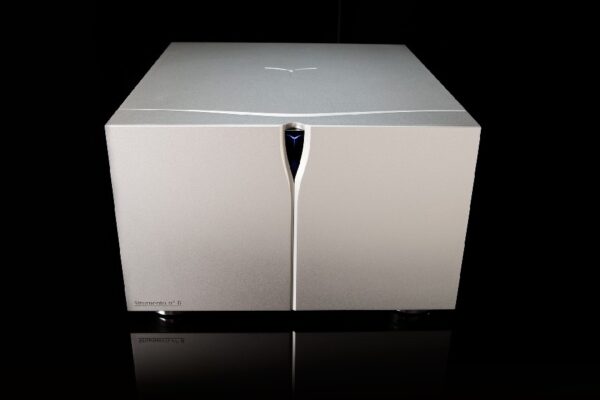

AUDIA Flight Strumento No. 8 are Flagship Monural Amplifiers employing inertial system of mechanical decoupling of the transformers.
After so many listening and tests to develop the STRUMENTO n° 4 we start again to develop the status of art of the mono-blocks.
The STRUMENTO n° 8 is an unrivalled power amplifier where speed, power, driving capability and control ability are elements close to perfection.

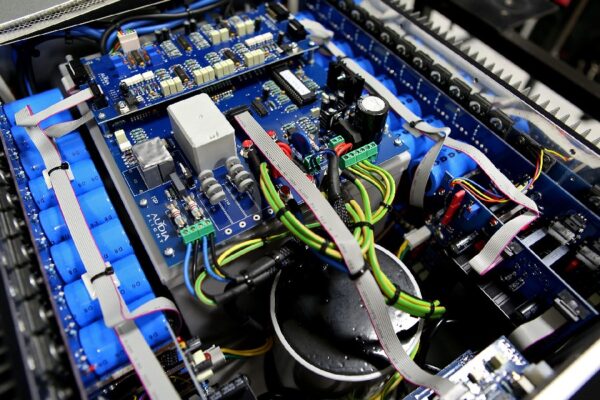

A fully balanced circuitry, highly selected components, 48 power devices, a power supply built with extra low impedance, computer grade capacitors (217.000µF only on the main power suppliers), 12 power suppliers, special print boards with an extra high surface copper, copper bars, 3000VA special audio transformers with double shield, ultra fast rectifiers, 500Wrms on 8ohm output power are only few of main elements to give you the best and emotional experience in term of reproduction.
In additional, The STRUMENTO n° 8 has an inertial system of mechanical decoupling of the transformers to eliminate the mechanical vibration to the amplifier
The STRUMENTO n° 8 is the perfect device for amplifying musical signal with the best precision, energy and speed (bandwidth more than 1,3MHz) and driving best any loudspeaker system.
Output power per channel Wrms 8/4/2 ohm 500/1000/2000 Input sensitivity 1.41 Vrms Frequency response (1W rms -3dB) 0,3 Hz ÷ 1 MHz Slew-Rate (on 8 ohm) > 200 V/μS THD < 0,05 % S/N Ratio 110 dB Input impedance Unbalanced 7,5 Kohm Balanced 7,5 Kohm Damping factor (on 8 ohm) > 1000 Main voltage AC (50-60Hz) 100, 110-115, 220-230, 240 V Power consumption 3300 W MAX Dimensions and weigth 450x280x500mm (wxhxd) – 95 Kg Shipping dimensions and weigth 580x410x700mm (wxhxd) – 125 Kg
